Isolation Valves

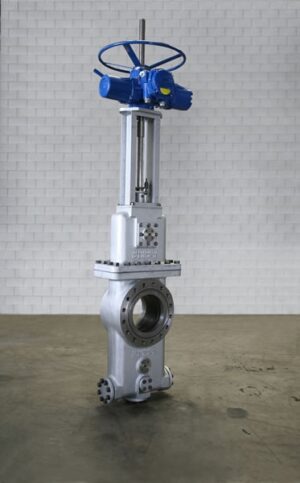

High-Performance Coker Isolation Valve
The DeltaValve coker isolation valve sets a higher standard for reliability and performance in high-temperature, dirty service applications. Specifically designed for coker operations, it maximizes efficiency, reduces maintenance, and supports sustainability initiatives. This valve is built to withstand the demanding environments of delayed coking units.
Featuring an anti-fouling design with gate containment plates, the valve traps process media within the gate’s orifice, ensuring maintenance-free operation. Self-cleaning, live-loaded metal seats provide a tight shutoff, reducing steam consumption and associated costs. Its top-entry design allows for in-line servicing without removing the valve, making it ideal for a range of delayed coking applications.
Why choose the DeltaValve Isolation Valve?
- Double Block and Pressure Assist Seating Technology
- Gate Containment Plates
- Steam Pressure Assist Seating
- Tight Shut-off
- Long Service Life
- High Performance
- Top Entry Design
- Direct Valve drop in
- Pipeline System Operation
- Industry Sustainability
- Wide Range Versatility
Isolation Valve Technical Data
| Size | 6 inch to 36 inch [150mm to 900mm] |
|---|---|
| Pressure Class | CL150, CL300, CL600, CL900 |
| Body Material | ASME SA217 C12, SA217 C5, SA216 WCB |
| Seat Material | ASME SA182 F9, SA387 Gr91 CL2 (Nitrided) |
| Gate Material | ASME SA387 Gr91 CL2 (Nitrided) |
| Stem Material | ASME SA182 F6A |
| Bolting | ASME SA193 B16, SA194 Gr7L |
| Actuation | Electric, Hydraulic, Manual, Bare Stem |
Engineering and ASME Standards | |
| B16.5 / B16.47 | Pipe flange and flanged fittings |
| B16.10 | Face-to-face and end-to-end dimensions of valves |
| B16.34 | Valves flanged, threaded, and welding end |
| API 598 | Valve inspection and testing |
| API 600 | Steel gate valves |
